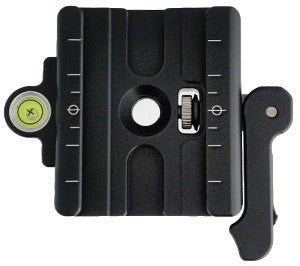

SunwayFoto DDC-60LR Arca Swiss Compatible Lever Release Clamp

Information

• Name：lever-Release Clamp DDC-60LR
• Model：DDC-60LR
• Brand：SUNWAYFOTO
• Jaw Length: 60mm
• Width: 85mm
• Height: 15mm
• Weight: 113g
• Thread: UNC3/8"
• Colour: Black
• Package W. : 282g

Details

DDC-60LR Lever-Release Clamp, 60mm jaws. With 3/8 UNC mounting hole.(DDC-50LR with 3/8, DDC-42LR with 1/4-20").  Can be mounted onto our ballheads or Arca-swiss,RRS, Kangrinpoche ballheads. Use Metric 6 flat head screw to mount onto a ballhead. Can mount onto 3/8 threaded post.

With spirit level,  safety stop relief grooves. (Spirit level is removable)


Easy Loading: In one quick action, clamp can go from fully closed to fully open.
The lever can be stopped in 3 positions:  fully closed;  half open; and,  fully open.

1. The half-open position allows the camera/lens plate to slide within the clamp for positioning adjustment.

2.  Can set for L or R handed use


Ultralight, solid and easy to operate.

Can set width to match your brand of plates

All SUNWAYFOTO Lever- Release clamps are user-adjustable,  can fit plates from different manufacturers as RRS,Markins, Arca-swiss, Acra Tech etc.



Using Lever Release Clamp                                                 Lever Release Clamp Left-Right Convertible



Warning： please not to unscrew the clamp jaw too far in case the Lever coming apart!


Note:
Sunwayfoto lever-release clamps can compatible with all Arca-Swiss style quick-release plates, but due to wide variations in other brands of Arca-style compatible plates, we recommend using our lever-release clamps only with quick release plates from single manufacturer.

Product Review:

http://www.fredmiranda.com/forum/topic/962858

Included

1x DDC-60LR Lever Release Clamp
