Leofoto AZ-235C+LH-30R Azure Series Carbon Fiber Ultra-Compact Tripod Kit
Leofoto AZ-235C + LH-30R Azure Series Carbon Fiber Tripod Kit

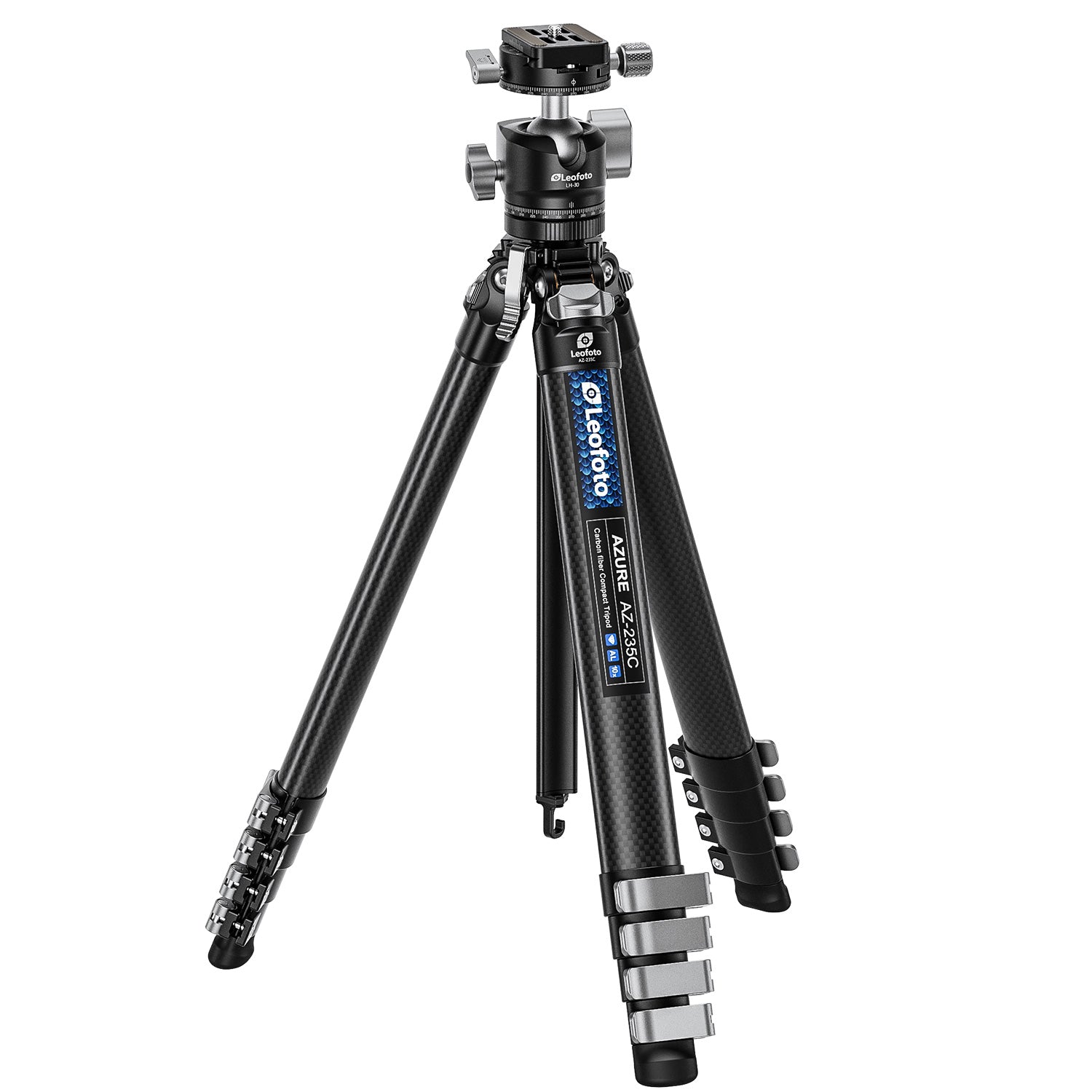

The Leofoto AZ-235C + LH-30R is an ultra-compact carbon fiber tripod kit from the Azure Series, designed for photographers who need full-size stability in a compact and travel-friendly package.

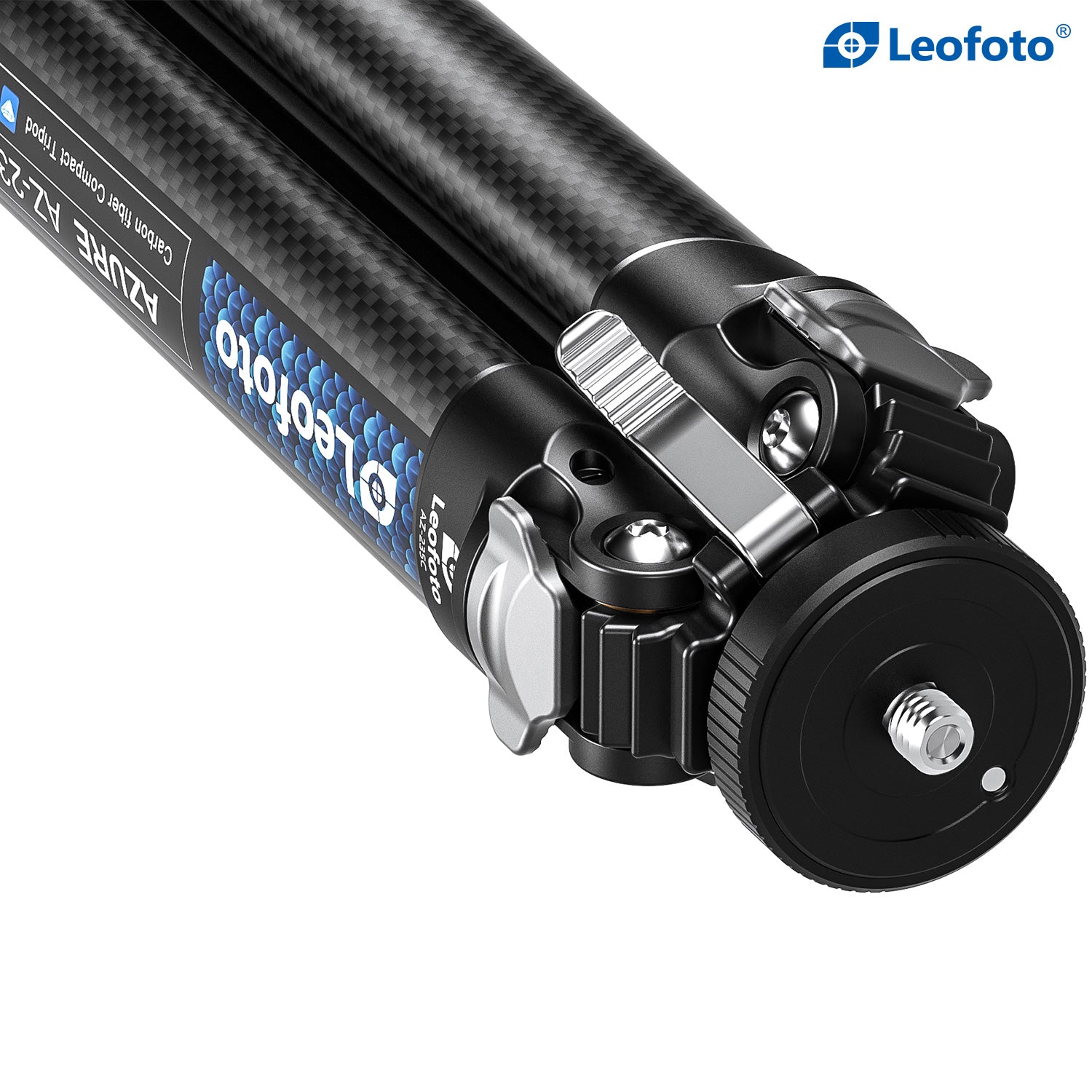

The innovative Y-shaped center column and oval carbon fiber leg tubes allow the tripod to fold into a slimmer profile without sacrificing stability. Combined with a redesigned flip-lock system, the AZ-235C is quick to deploy and easy to carry for travel, landscape, wildlife, architecture, and macro photography.
Key Features
- Ultra-compact Azure Series design

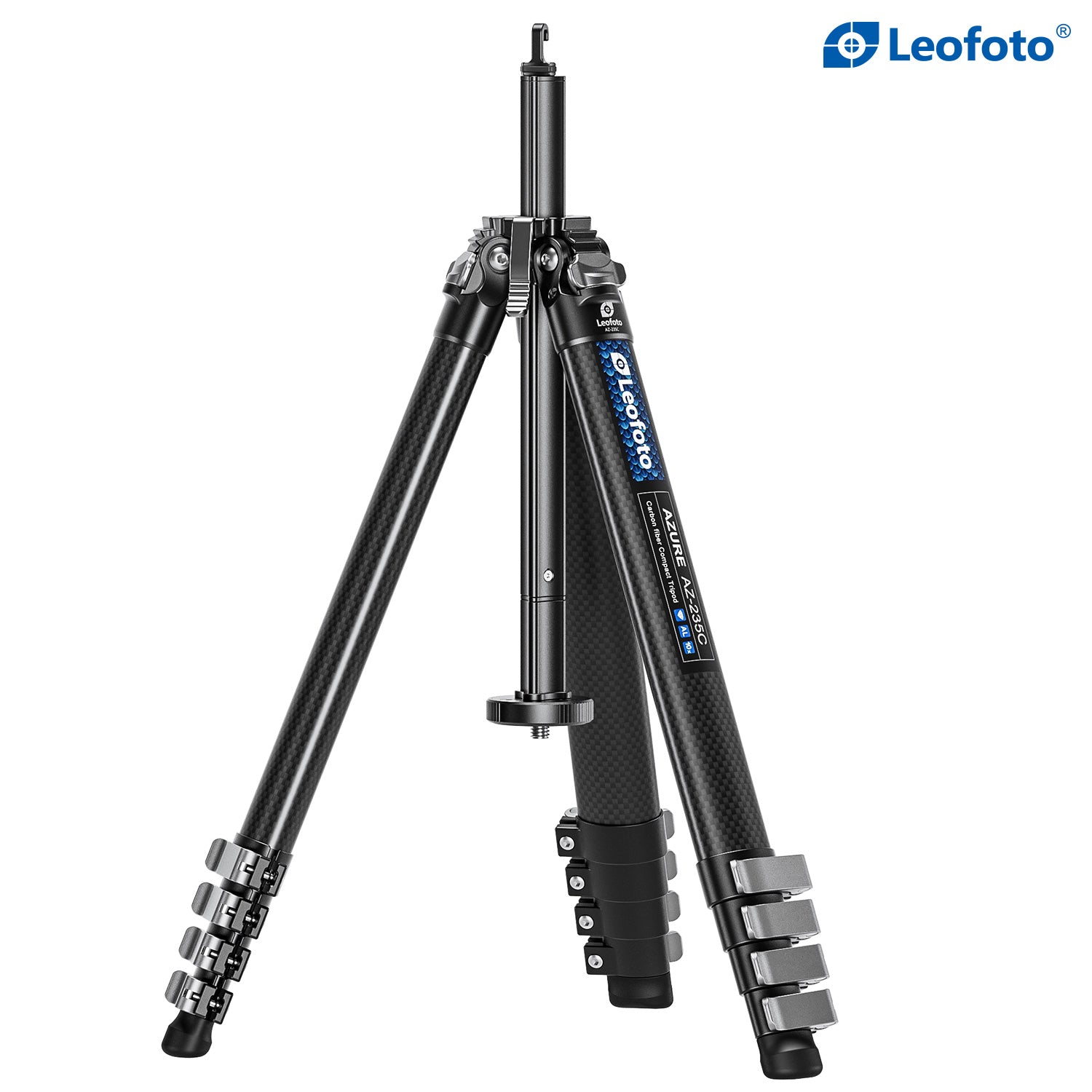

- Y-shaped center column for a slimmer folded profile
- Oval carbon fiber leg tubes

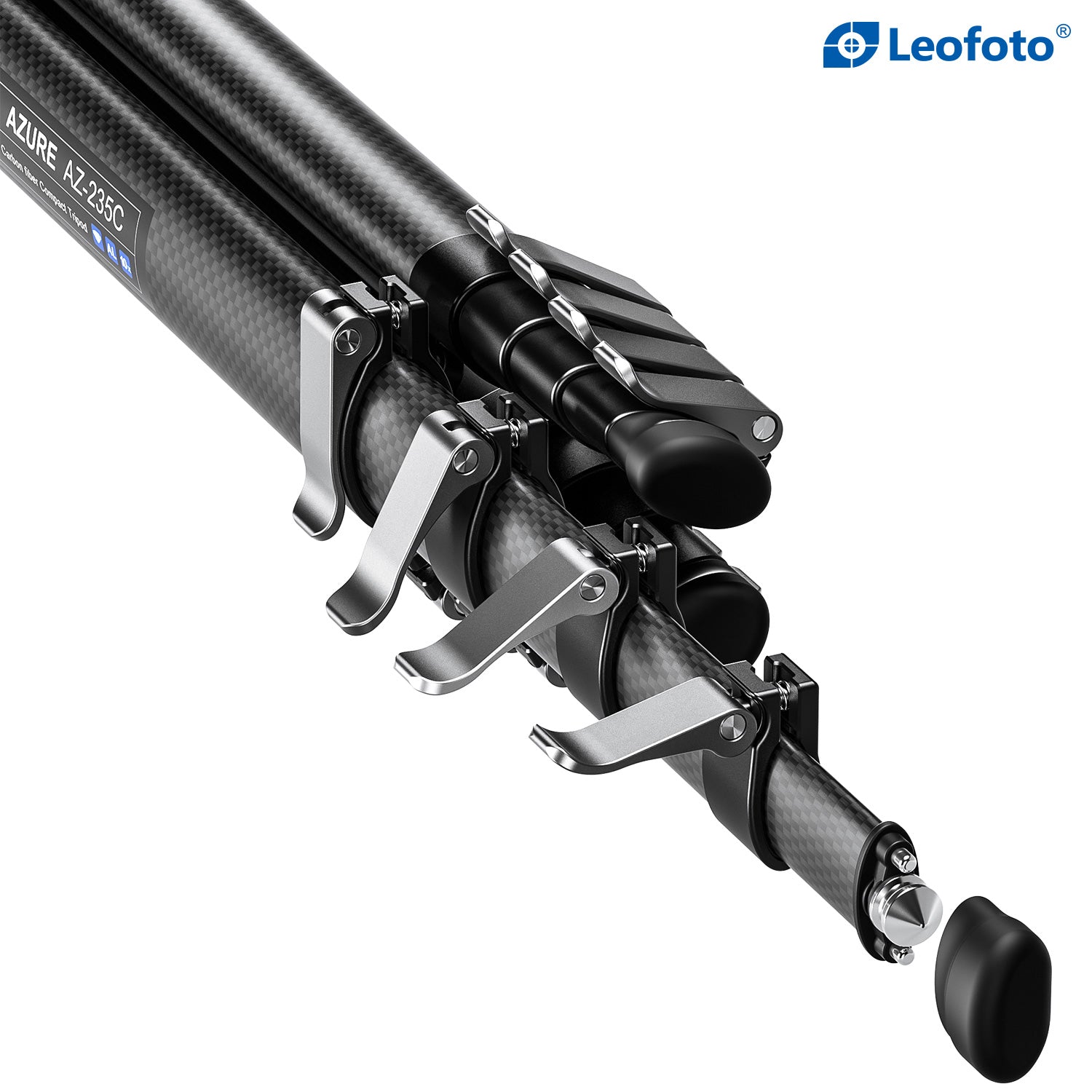

- Fast flip-lock leg system

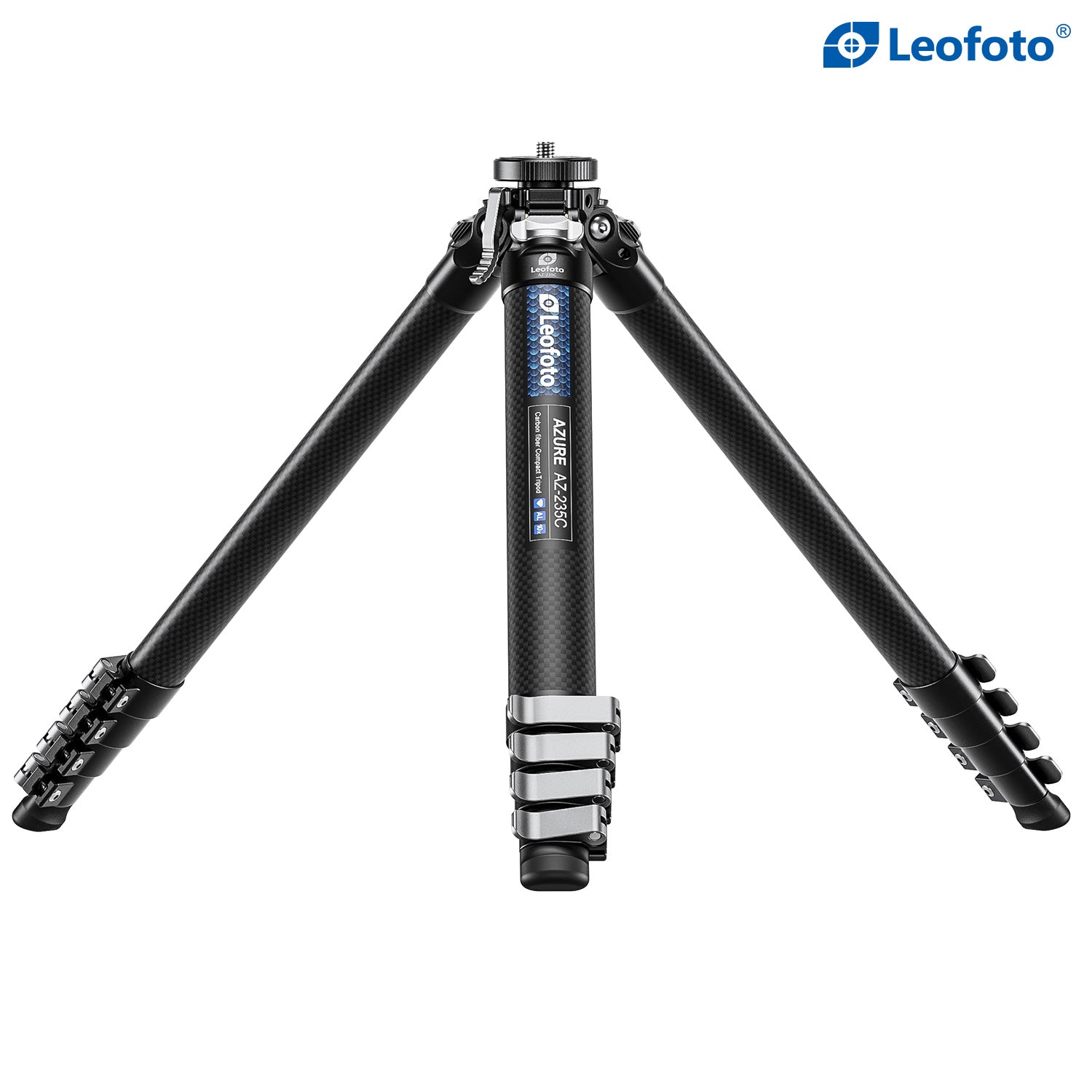

- 5-section carbon fiber legs
- Four leg-angle positions: 23°, 42°, 62° and 82°

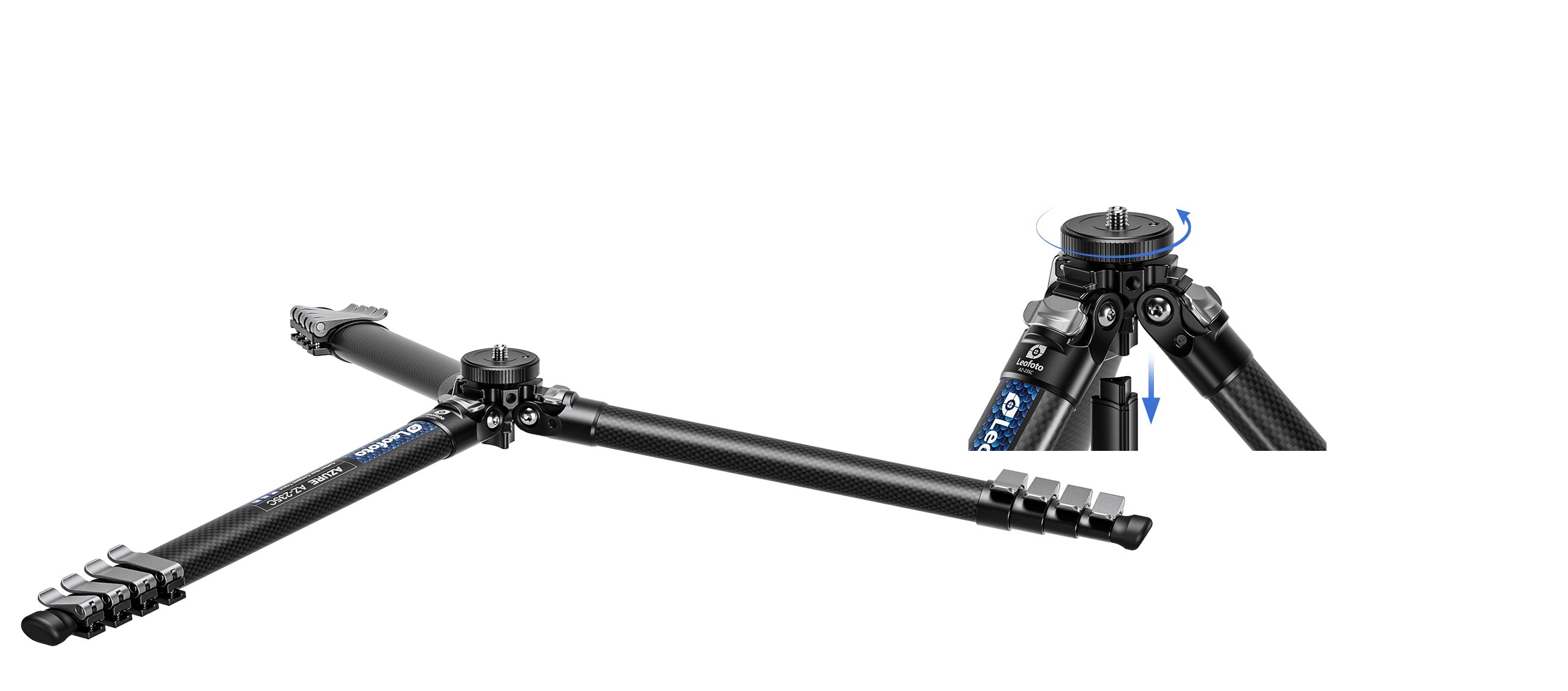

- Detachable center-column section for low-angle shooting
- Center column can be inverted for ground-level photography

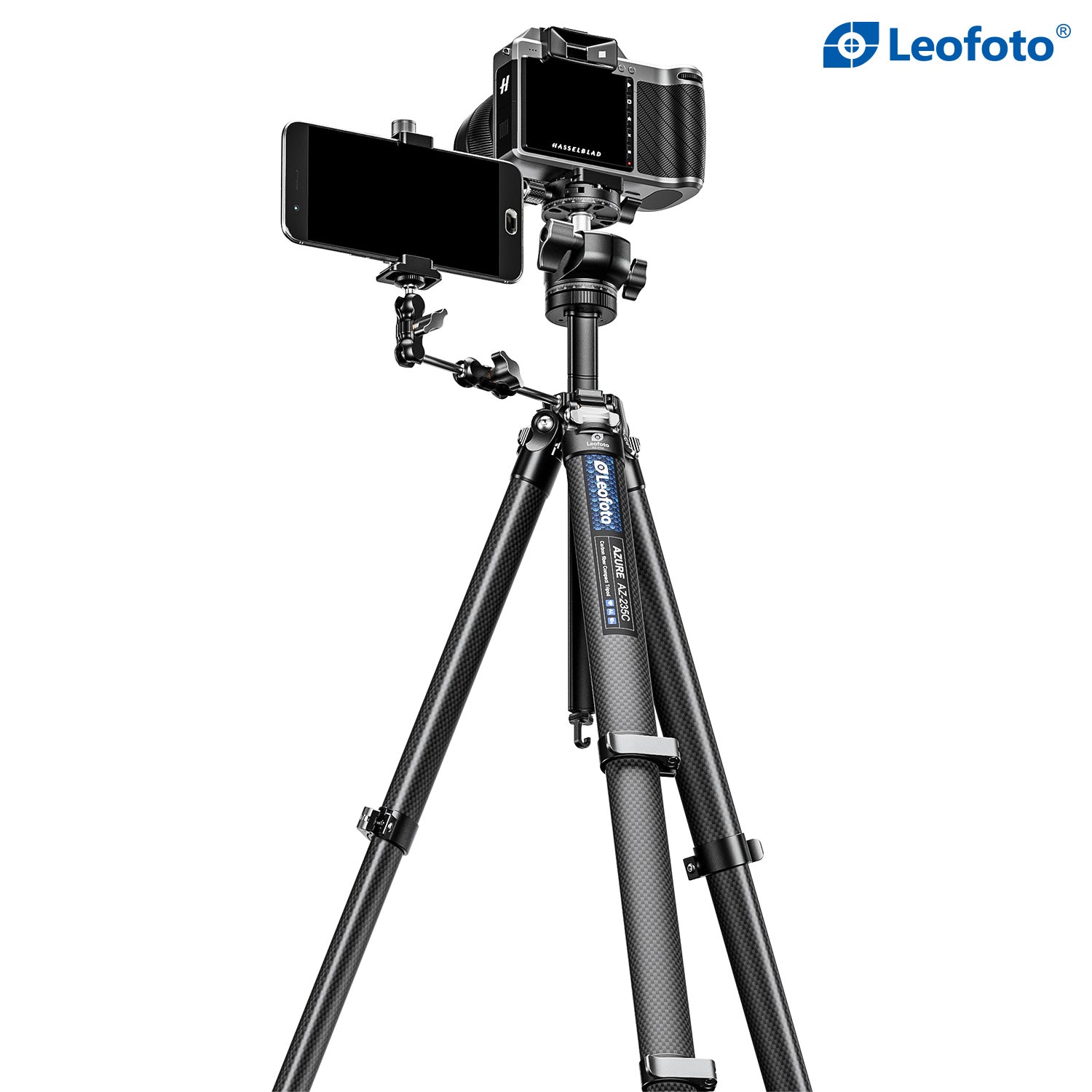

- Integrated 1/4"-20 accessory mounting point
- Maximum load capacity of 10 kg

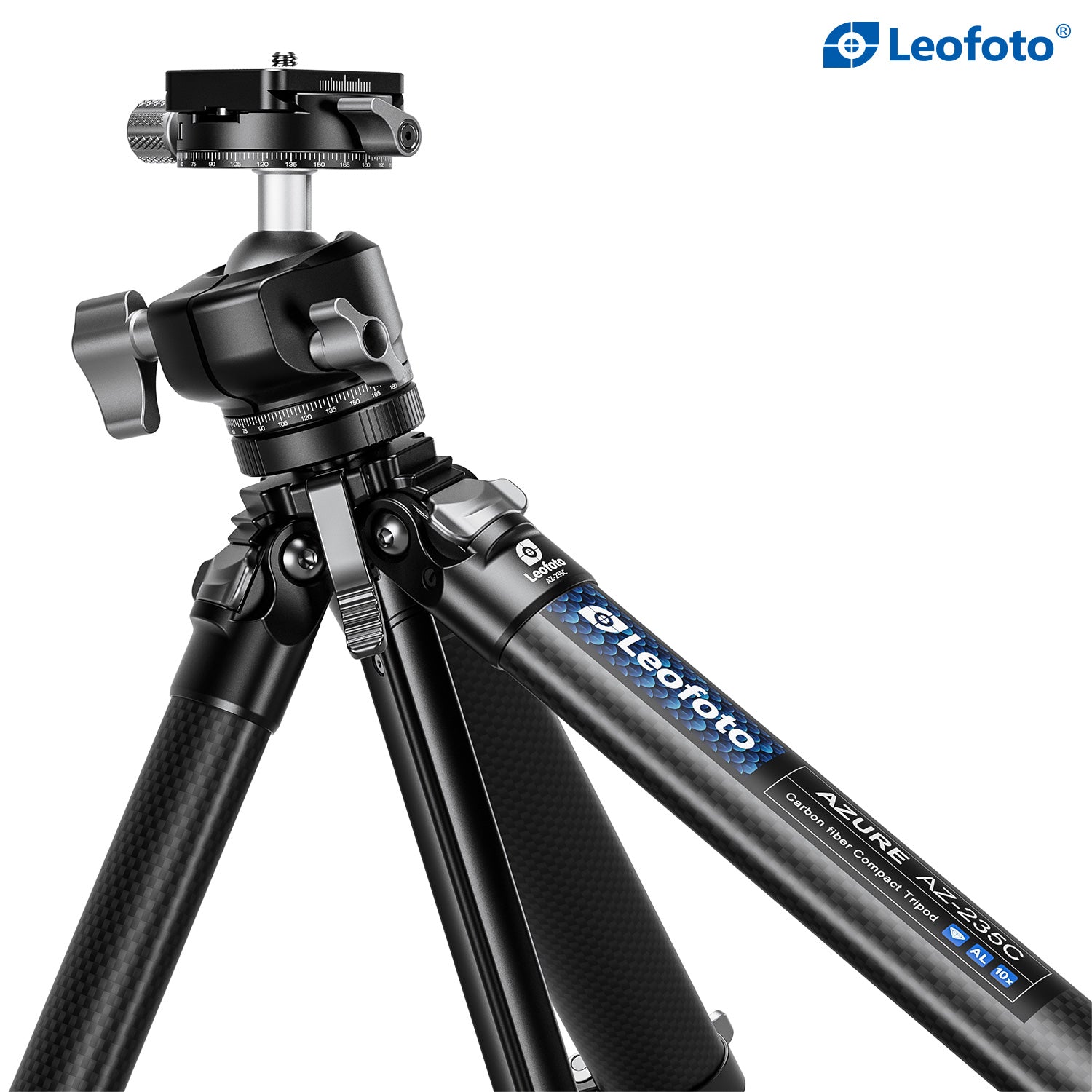

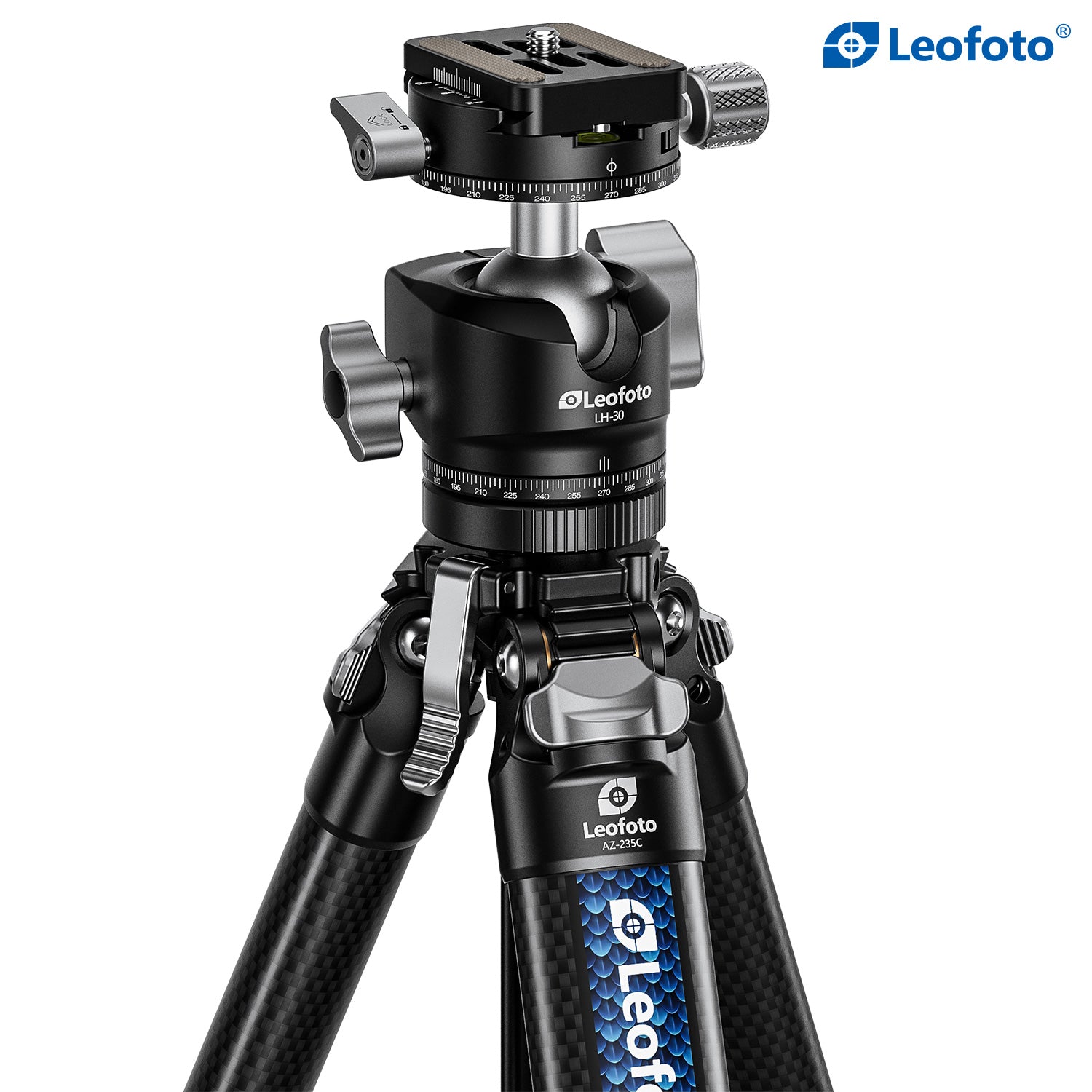

- Includes Leofoto LH-30R low-profile ball head
- Arca-Swiss compatible quick release system
- Independent panoramic rotation on the ball head

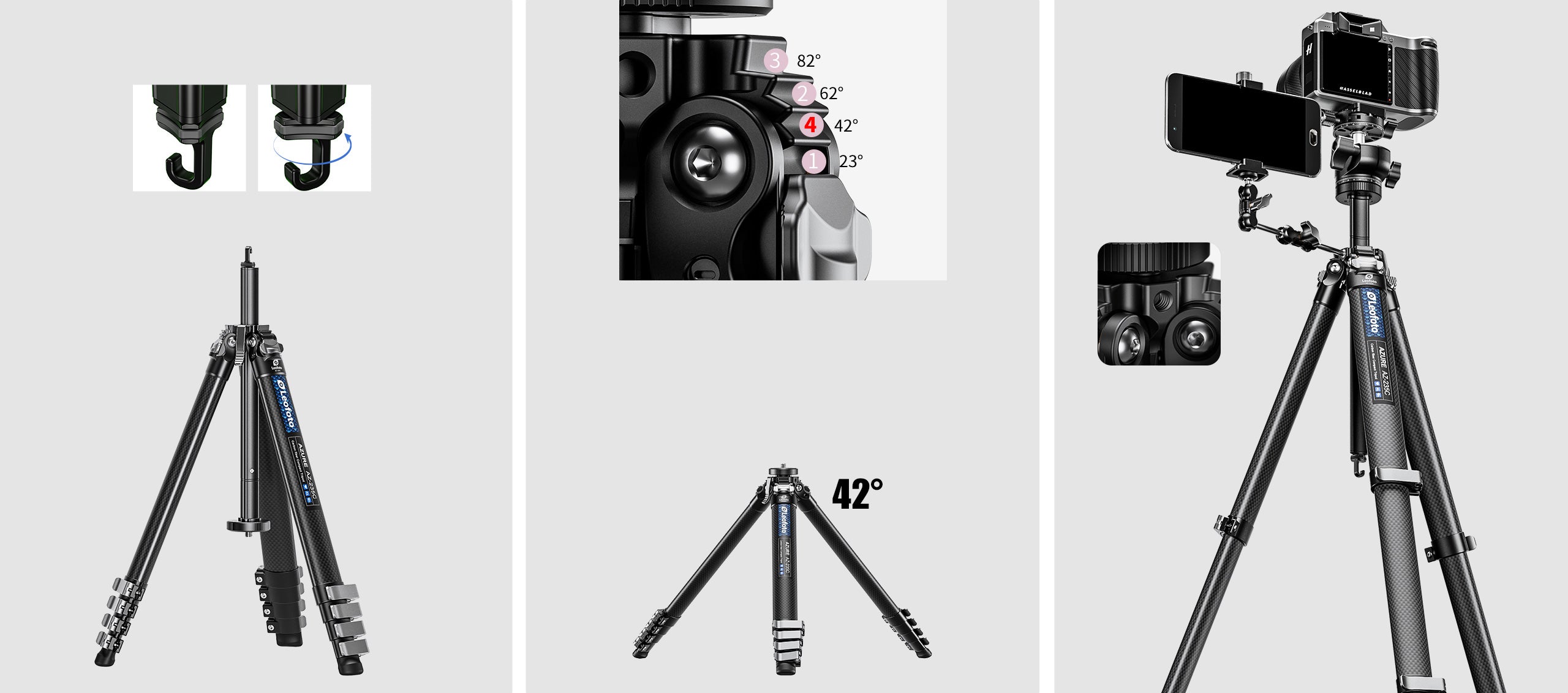

Leofoto specifically added the 42° leg-angle position to provide another stable stance between the conventional positions, particularly useful on uneven or windy locations.
Specifications
- Brand: Leofoto
- Model: AZ-235C + LH-30R
- Series: Azure
- Material: Carbon Fiber / Aluminum
- Leg Sections: 5
- Maximum Height: 1612 mm
- Height without full center-column extension: 1375 mm
- Minimum Height: 171 mm

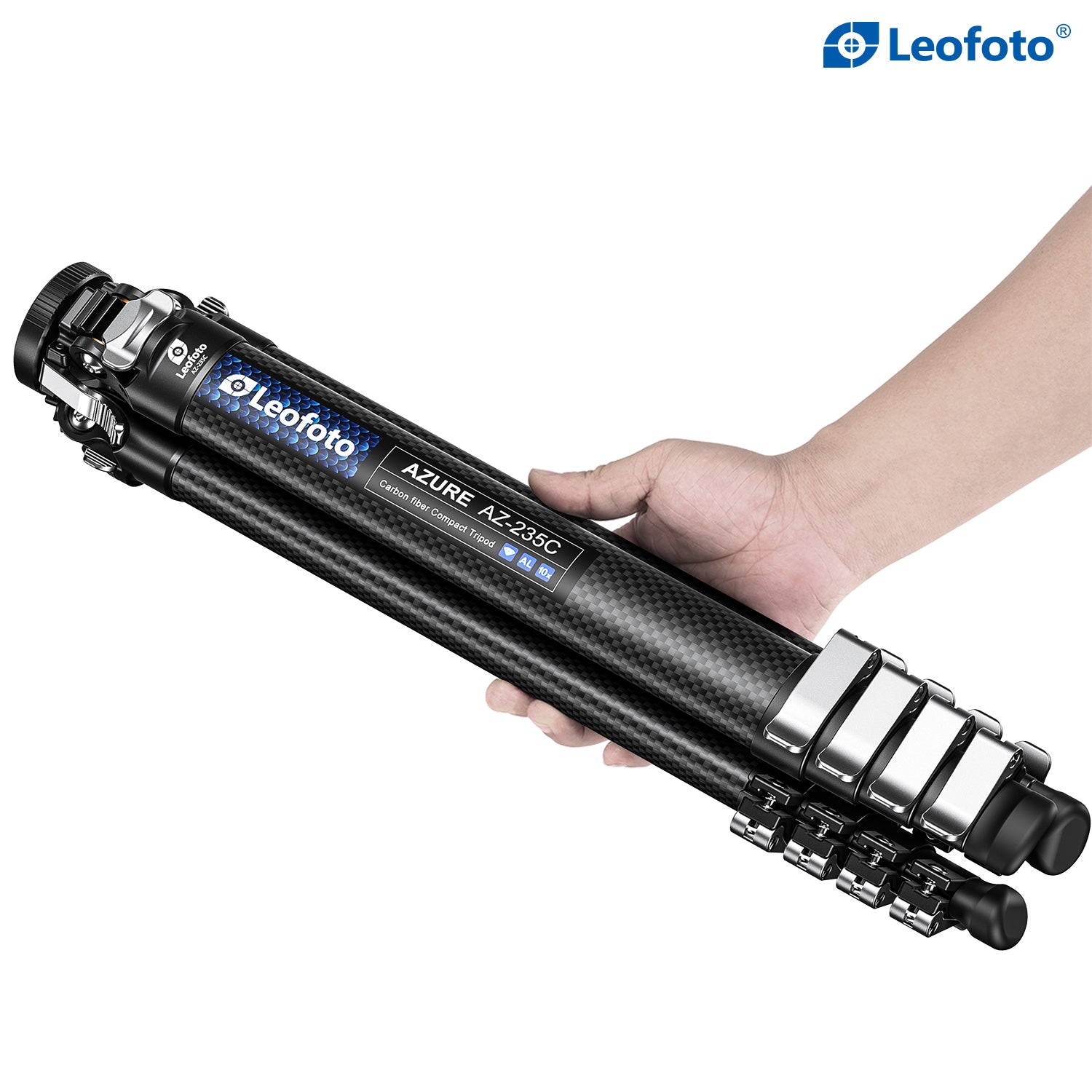

- Folded Length: 486 mm
- Maximum Leg Diameter: 38.5 mm
- Tripod Base Diameter: 49 mm
- Weight: 1.5 kg
- Maximum Load: 10 kg
- Leg Angles: 23° / 42° / 62° / 82°
- Included Ball Head: LH-30R
- Quick Release System: Arca-Swiss Compatible
- Accessory Port: 1/4"-20
Package Includes
- 1 × Leofoto AZ-235C Carbon Fiber Tripod
- 1 × Leofoto LH-30R Ball Head
- Arca-Swiss Quick Release Plate
- Carrying Bag
- Allen Keys
