Leofoto AZ-235C + MBH-30 Azure Series Carbon Fiber Tripod Kit - Matte Silver Gray

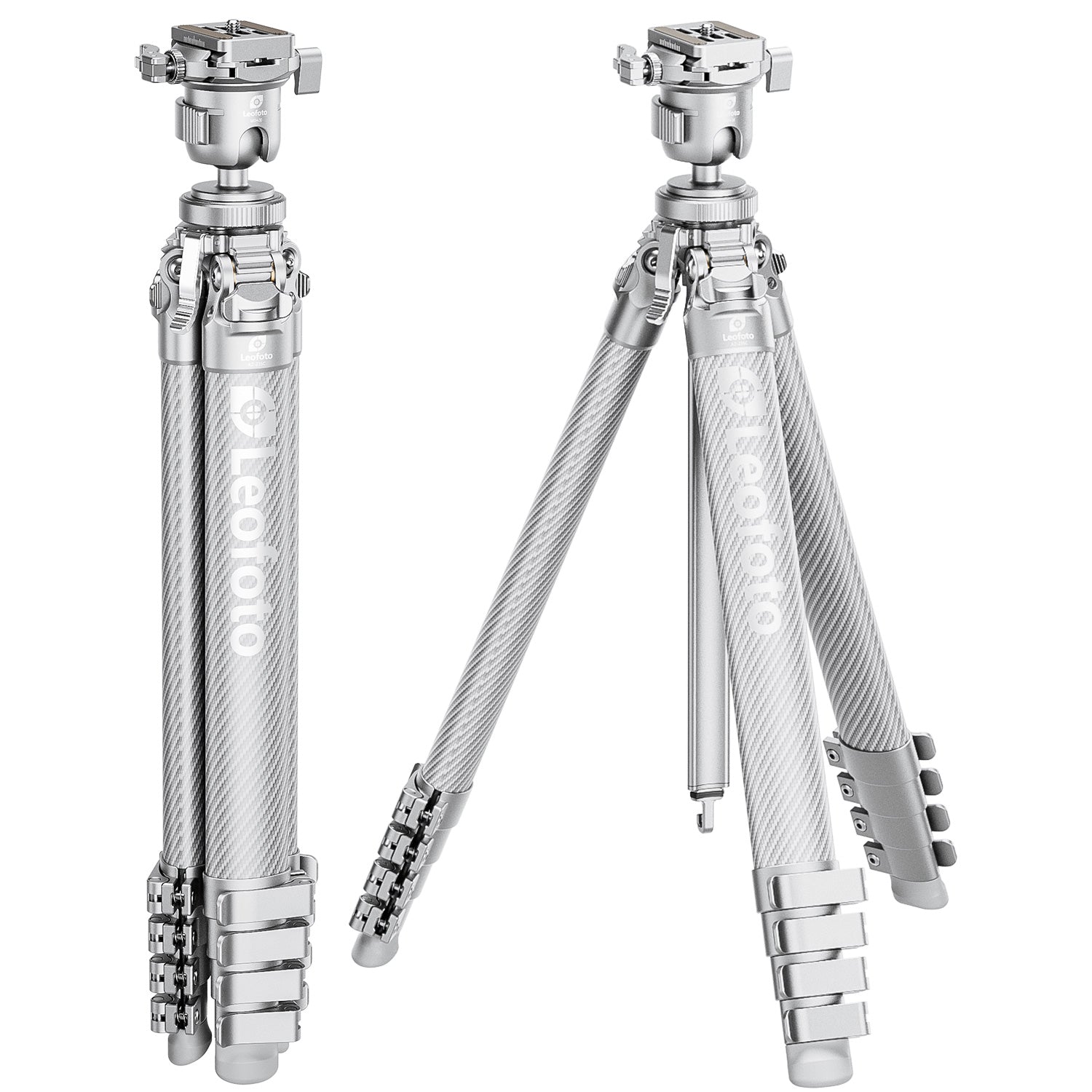

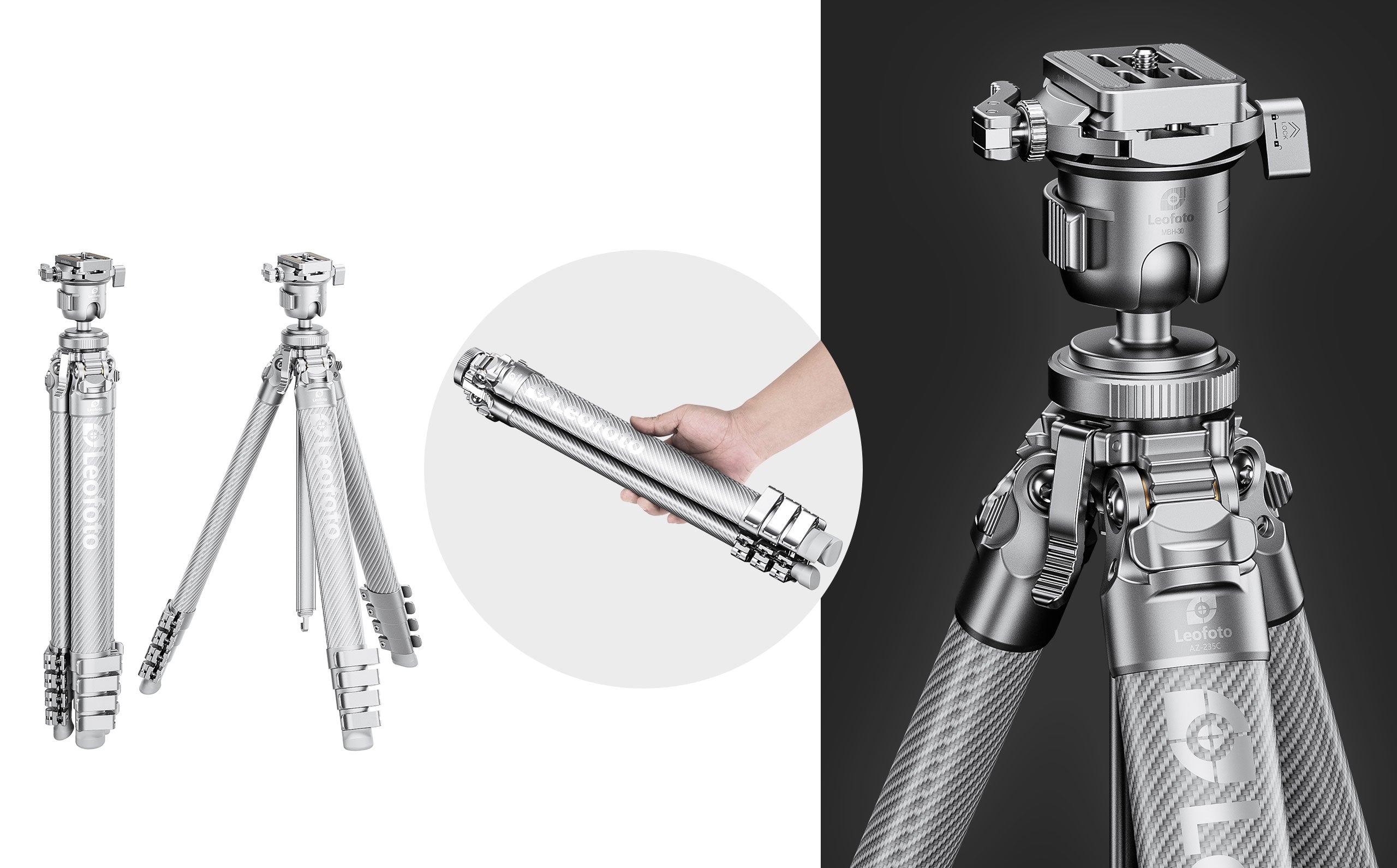

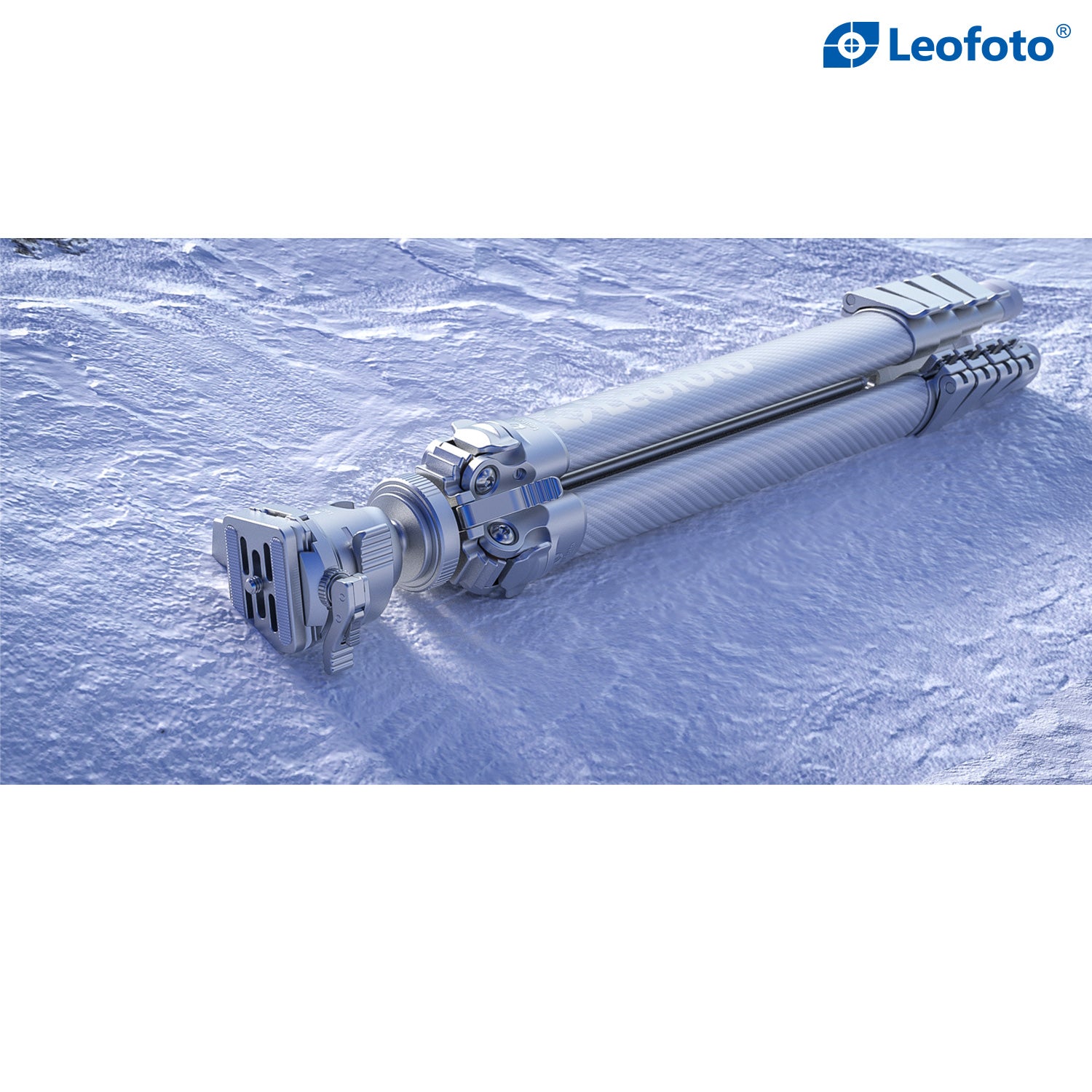

The Leofoto AZ-235C + MBH-30 is an ultra-compact carbon fiber tripod kit from the Azure Series, designed for photographers who need excellent stability, fast setup, and a compact travel size.

Its innovative Y-shaped center column and oval carbon fiber leg tubes allow the tripod to fold into a slimmer profile without sacrificing rigidity. The redesigned flip-lock system makes deployment quick and intuitive, while four independent leg-angle positions provide flexibility for landscape, travel, macro, studio, and low-angle photography.

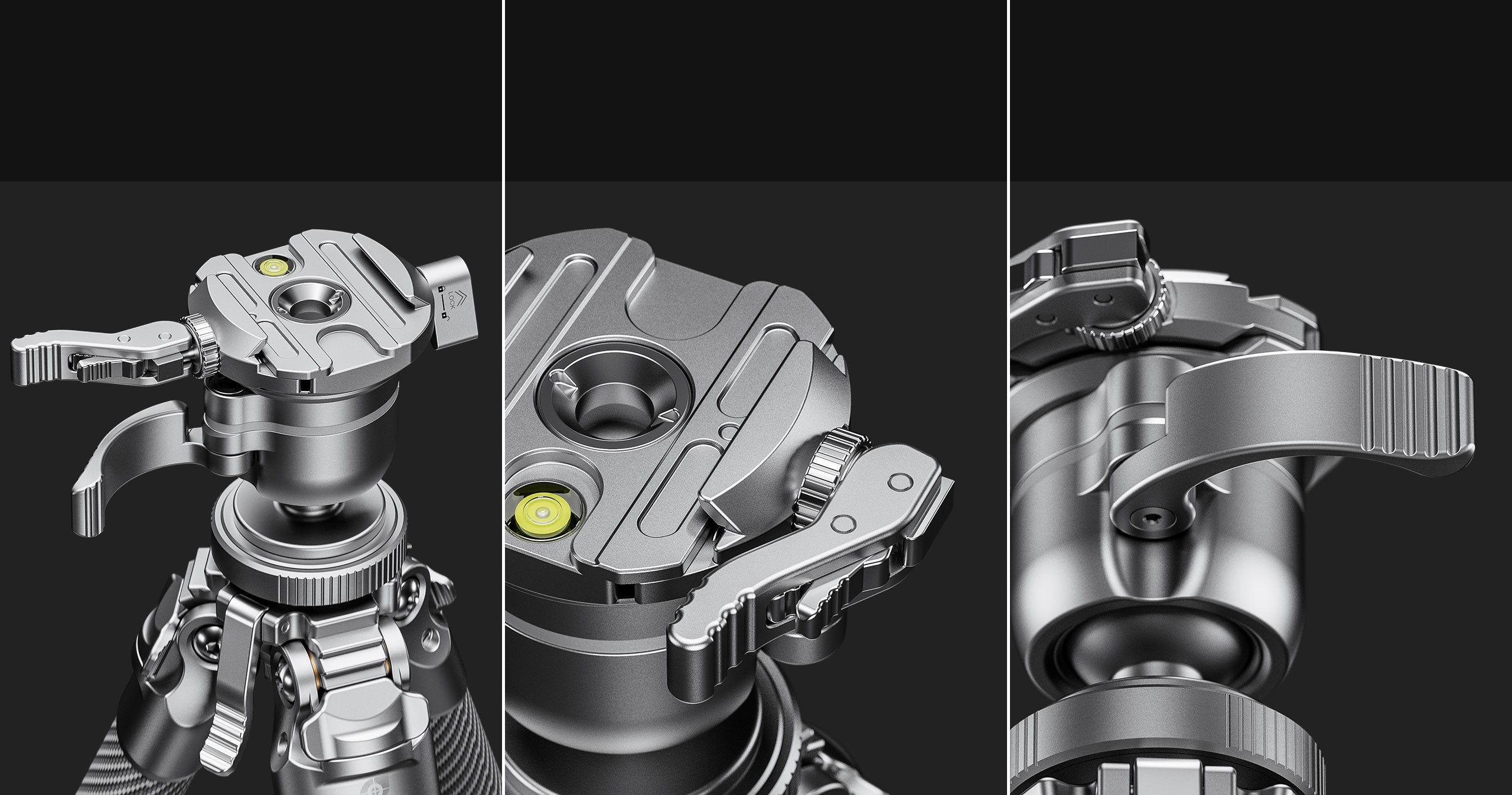

The kit includes the MBH-30 professional inverted ball head, featuring a 30 mm ball, full 360° panoramic rotation, a lever-lock ball control, and an Arca-Swiss compatible lever clamp. The clamp also incorporates a secondary safety lever and fine-adjustment mechanism to help prevent accidental release.

Key Features

• Azure Series ultra-compact carbon fiber tripod
• Matte silver-gray metallic finish
• Y-shaped center column for reduced folded size
• Oval-profile carbon fiber leg tubes
• Fast flip-lock leg system
• 5-section carbon fiber legs

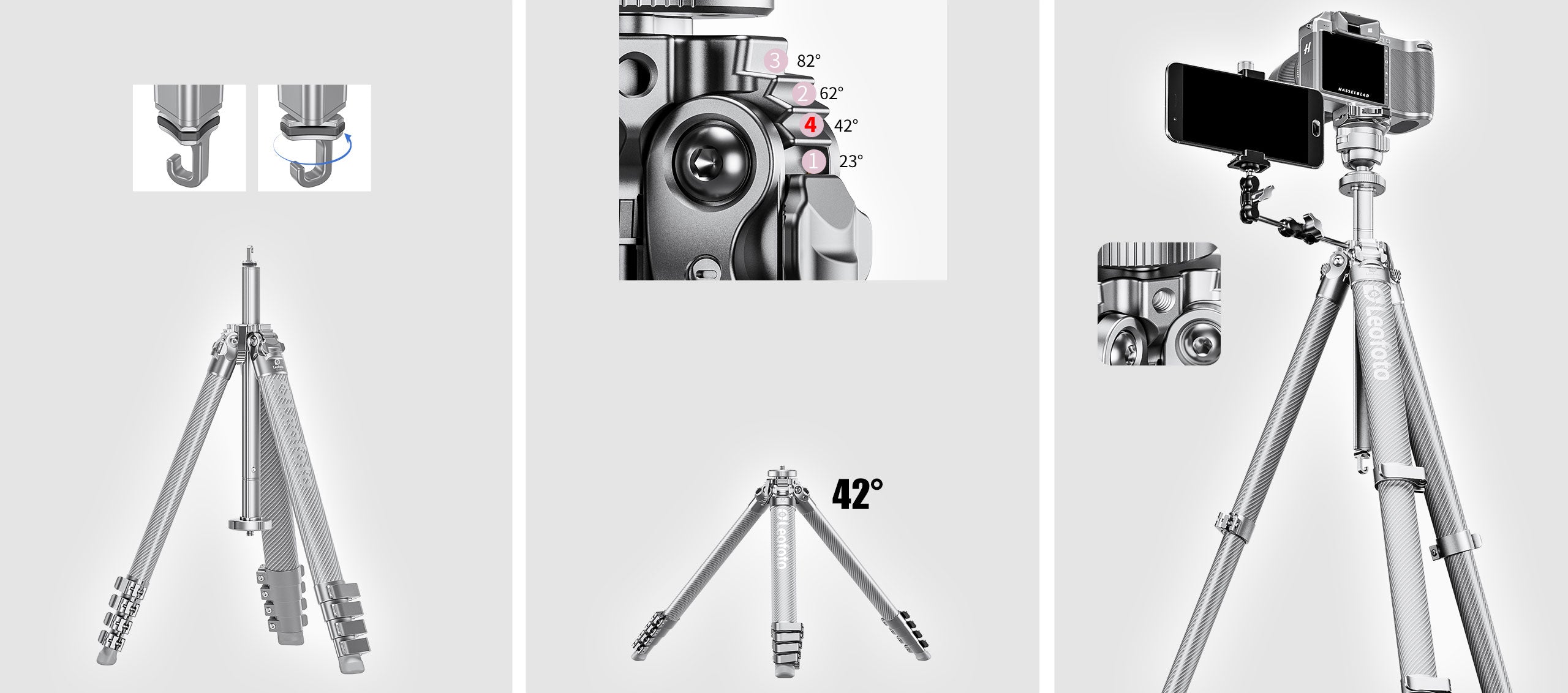

• Four leg-angle positions: 23°, 42°, 62° and 82°

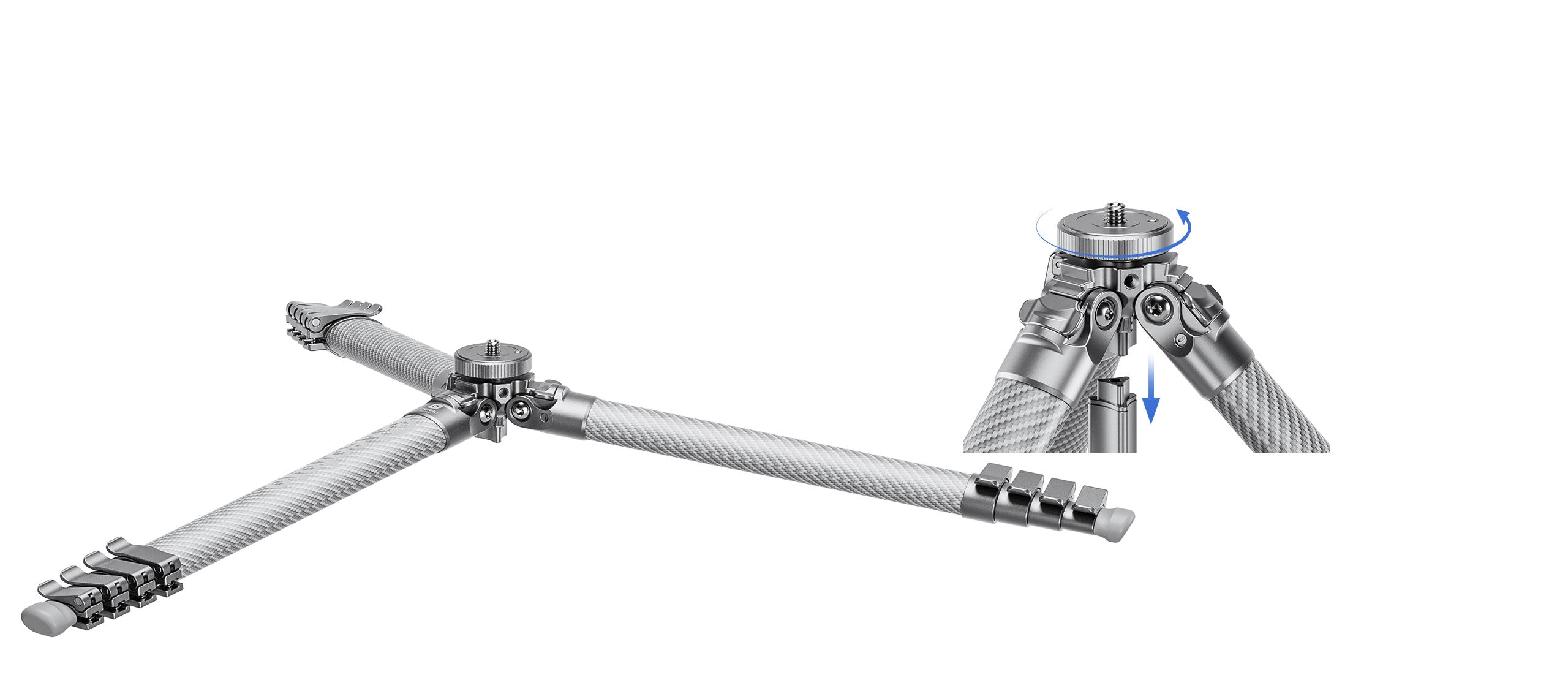

• Removable center-column section for low-angle shooting
• Reversible center column
• Integrated 1/4"-20 accessory port

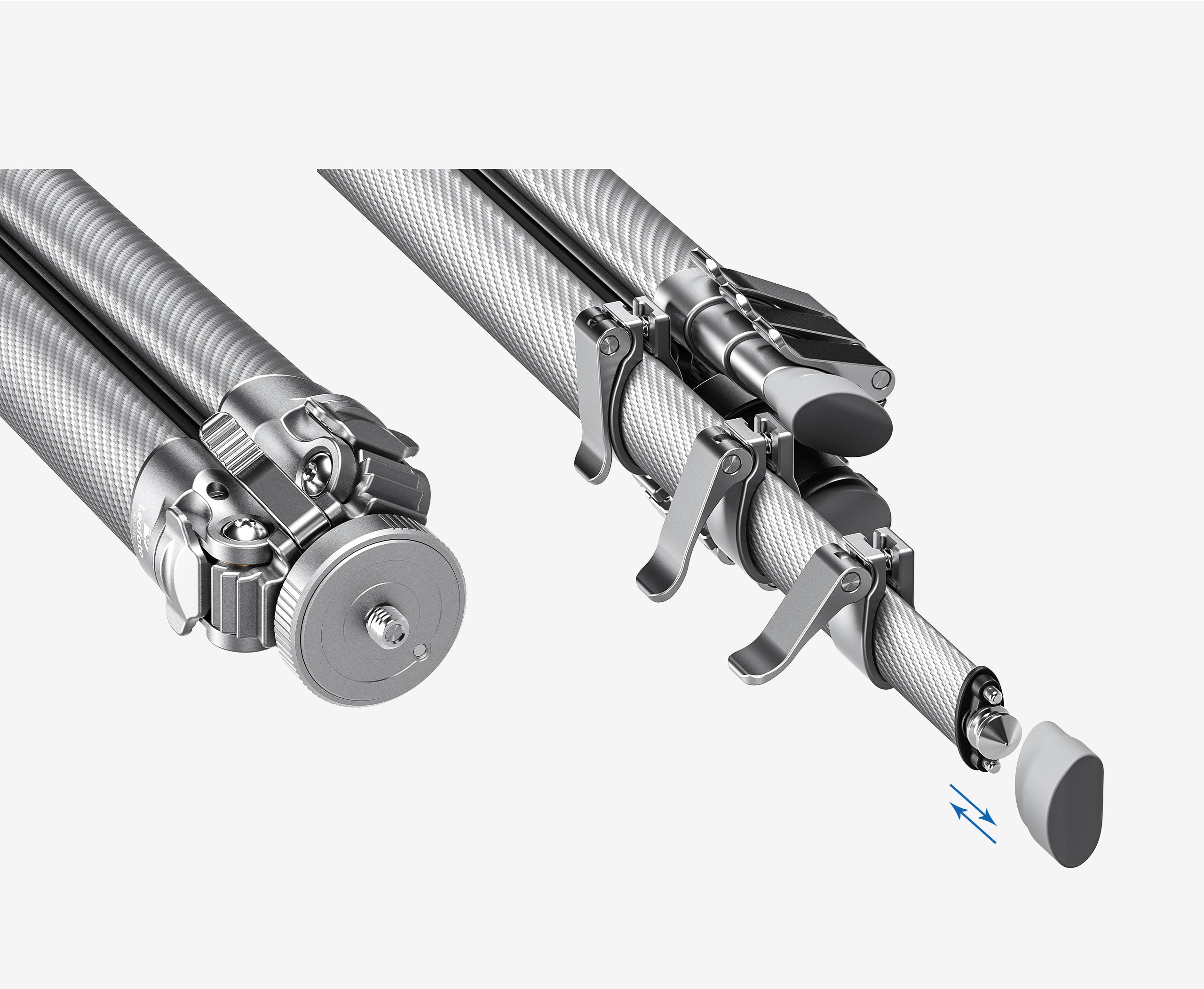

• Rubber feet with integrated spikes
• Maximum load capacity: 10 kg
• Includes MBH-30 inverted ball head
• 30 mm ball

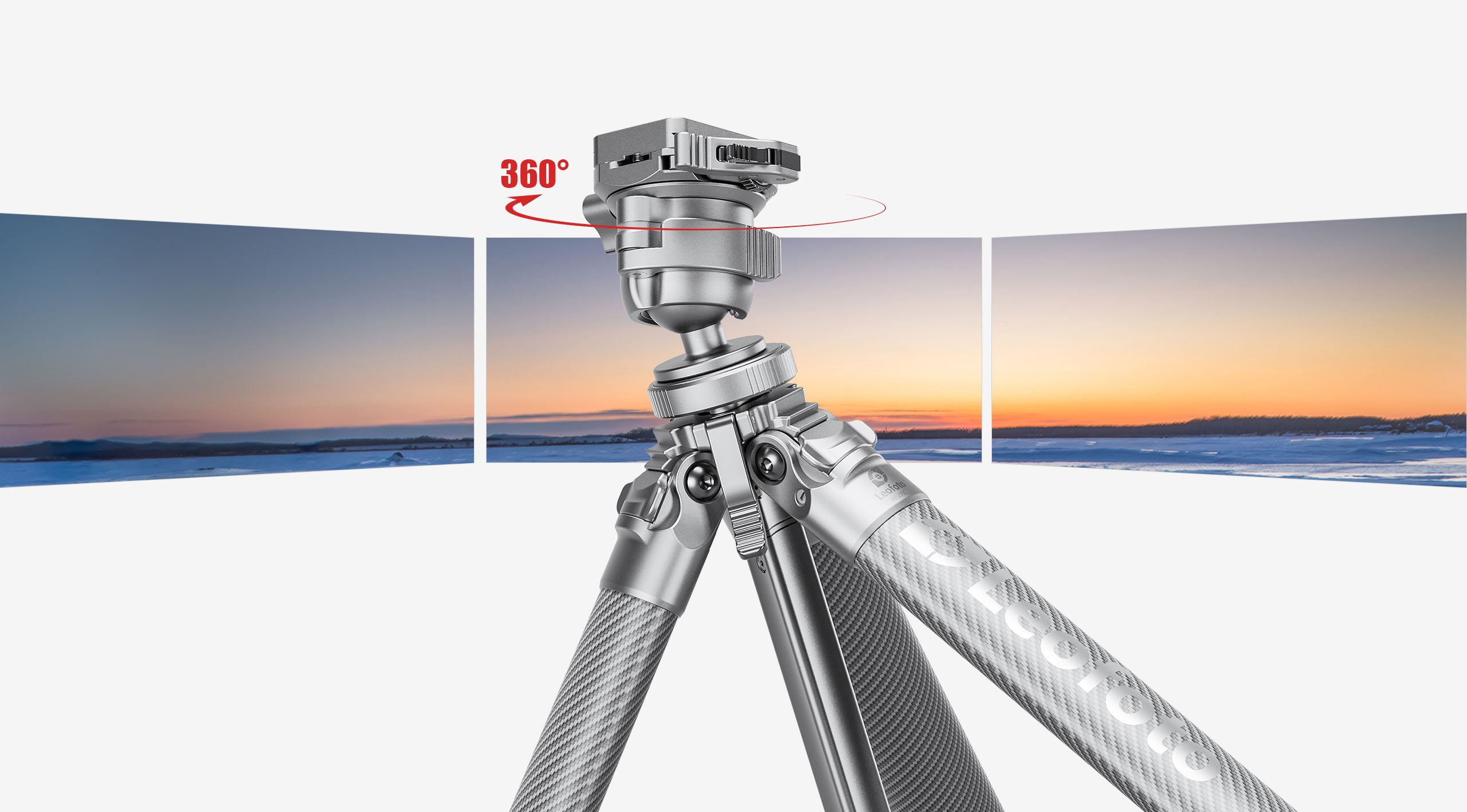

• 360° panoramic rotation
• Arca-Swiss compatible lever clamp
• Dual-safety clamp locking system

Specifications

• Brand: Leofoto
• Model: AZ-235C + MBH-30
• Series: Azure
• Color: Matte Silver Gray
• Material: Carbon Fiber / Aluminum Alloy
• Leg Sections: 5
• Maximum Height: 1600 mm
• Height with Center Column Down: 1290 mm
• Minimum Height: 160 mm

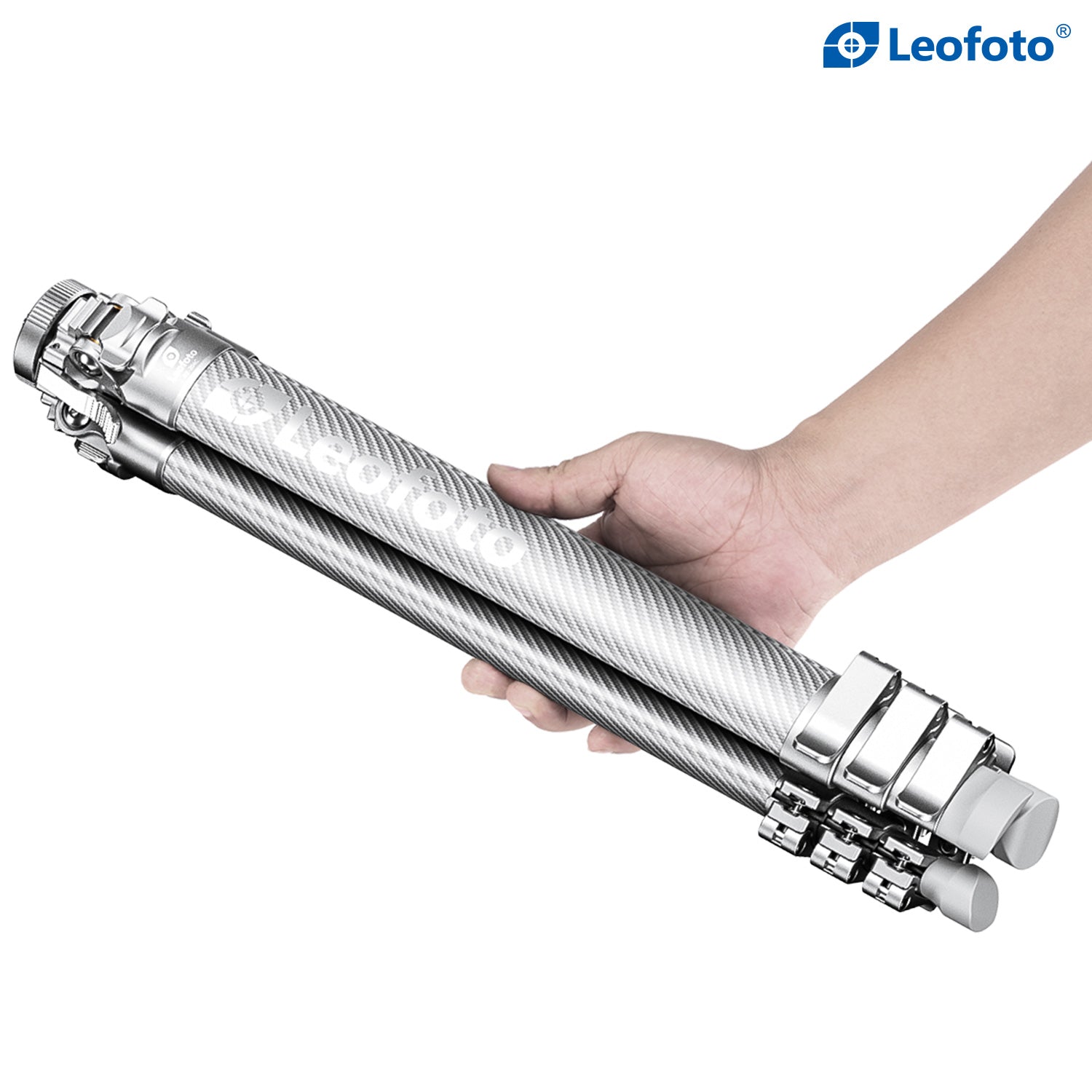

• Folded Length: 480 mm
• Maximum Leg Tube Diameter: 38.5 mm
• Minimum Leg Tube Diameter: 23.5 mm
• Weight: 1.54 kg including head
• Maximum Load: 10 kg
• Leg Angles: 23° / 42° / 62° / 82°
• Included Head: MBH-30
• Ball Diameter: 30 mm
• Quick Release Standard: Arca-Swiss Compatible
• Feet: Rubber / Spike
• Bubble Level: Yes

Package Includes

• 1 × Leofoto AZ-235C Carbon Fiber Tripod
• 1 × Leofoto MBH-30 Inverted Ball Head
• 1 × Arca-Swiss Compatible Quick Release Plate
• Carrying Bag
• Hex Key / Tools
